Maker Arm Field Cell / Visual Build Record

Concept views 01–06

Each AI-generated image documents a possible inactive work-cell design direction only. These are not photographs of completed hardware and are not evidence of robotic capability, fabrication quality, task performance, payload, motion safety, guarding effectiveness, emergency-stop effectiveness, tool safety, certification, or field deployment.

Project overview

Purpose: Explore a deployable fabrication work-cell concept.
Intended users: Fabrication teams and robotics researchers.
Current stage: Concept and design exploration.
Available evidence: Illustrative concept visuals. Physical performance and suitability require validation.
Proposed next milestone: Define a bounded task and qualified motion-safety assessment.

Select an image to enlarge it. Use the viewer controls or arrow keys to browse.

AI-generated concept render of an inactive robotic arm behind a transparent safety guard — **Guarded inactive-cell concept** Illustrative enclosure and parked-arm arrangement only; guarding, control, tooling, task, and safety engineering remain TBD.

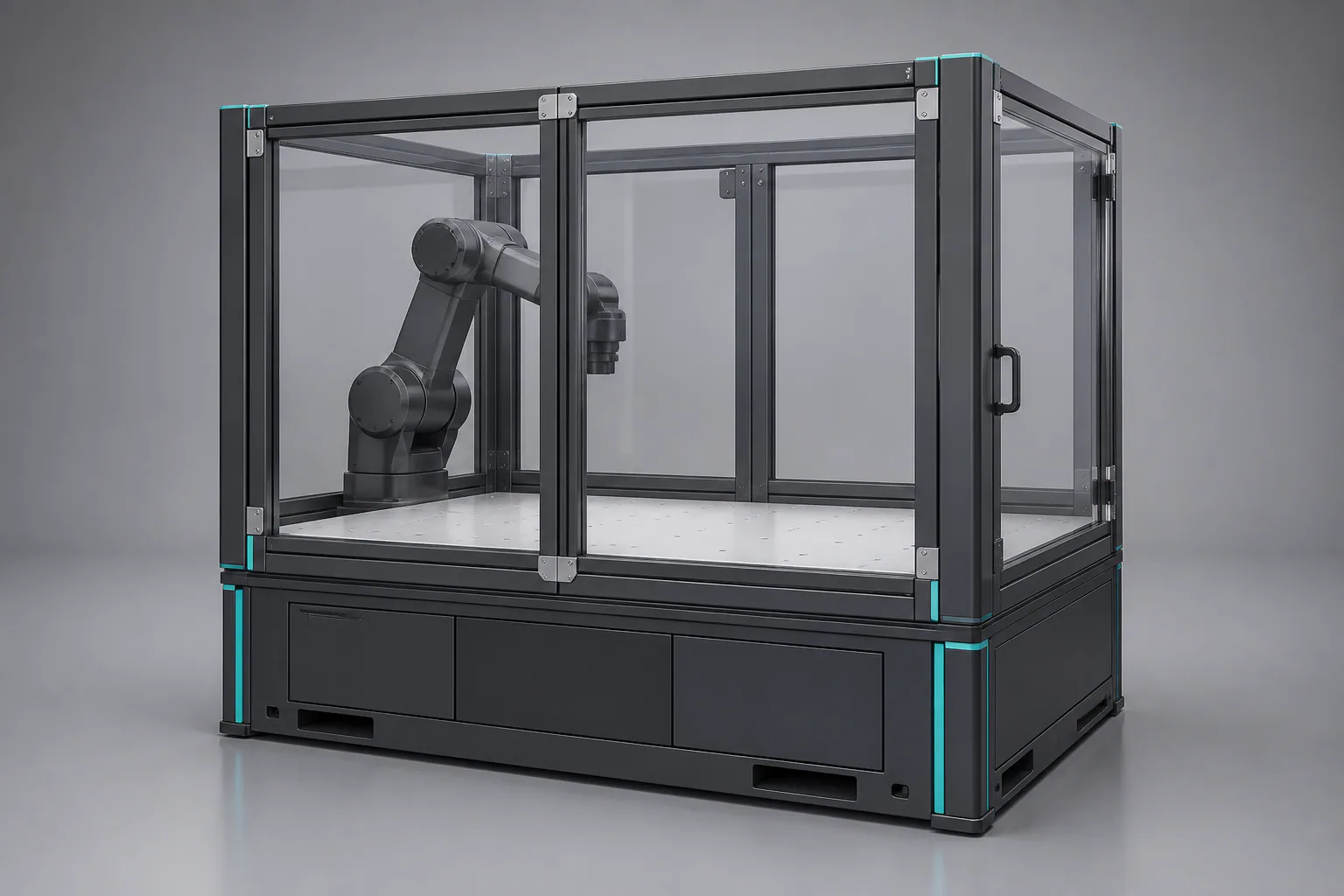

AI-generated concept render of an inactive work cell with a parked arm behind a transparent guard — **Exterior-cell study** Illustrative exterior only; no actual work envelope, payload, tooling, guarding effectiveness, or safe operating condition is represented.

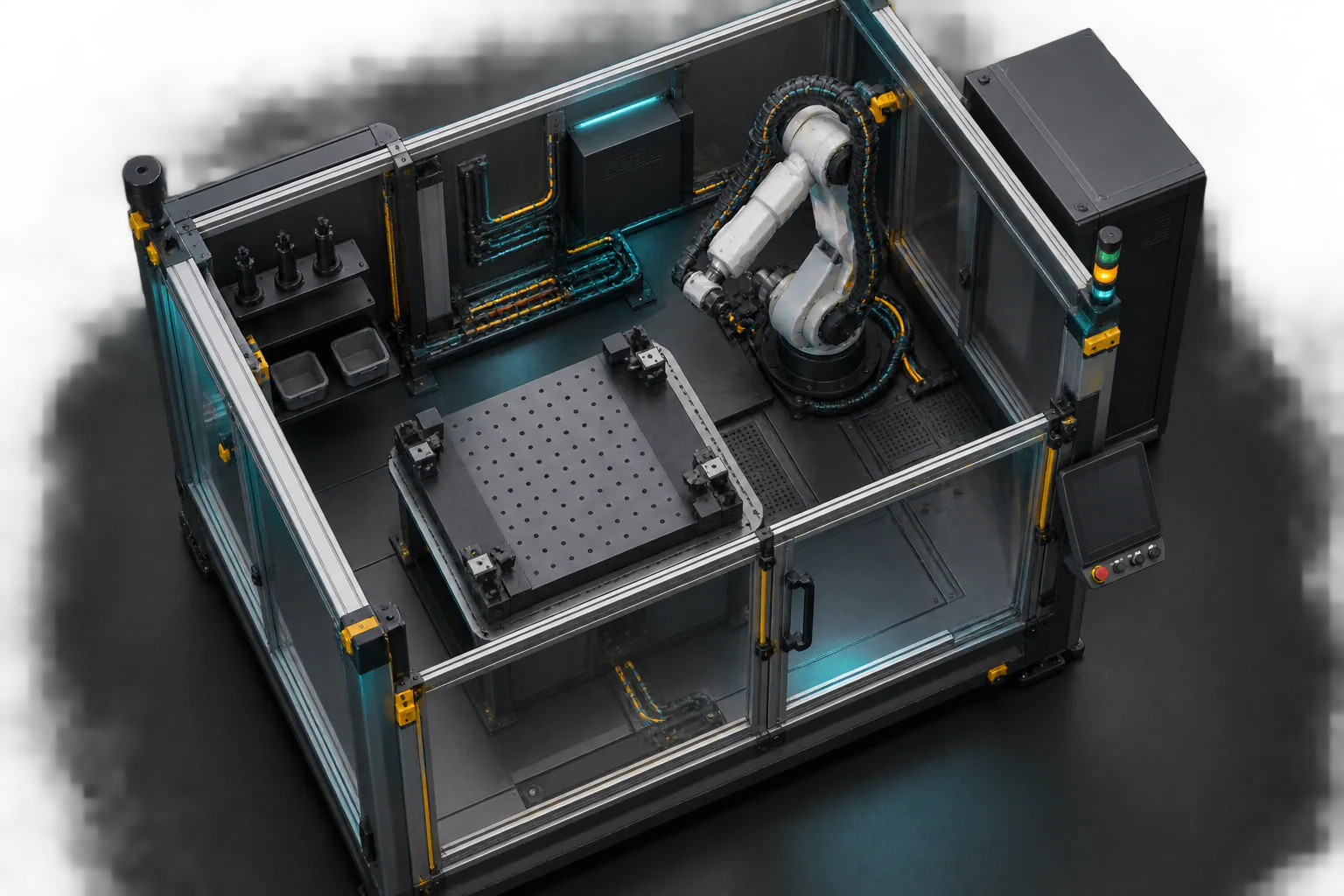

AI-generated overhead concept render of a parked arm and inactive transparent work cell — **Inactive layout study** Illustrative zone arrangement only; it is not a functional layout, wiring design, task definition, or safety validation.

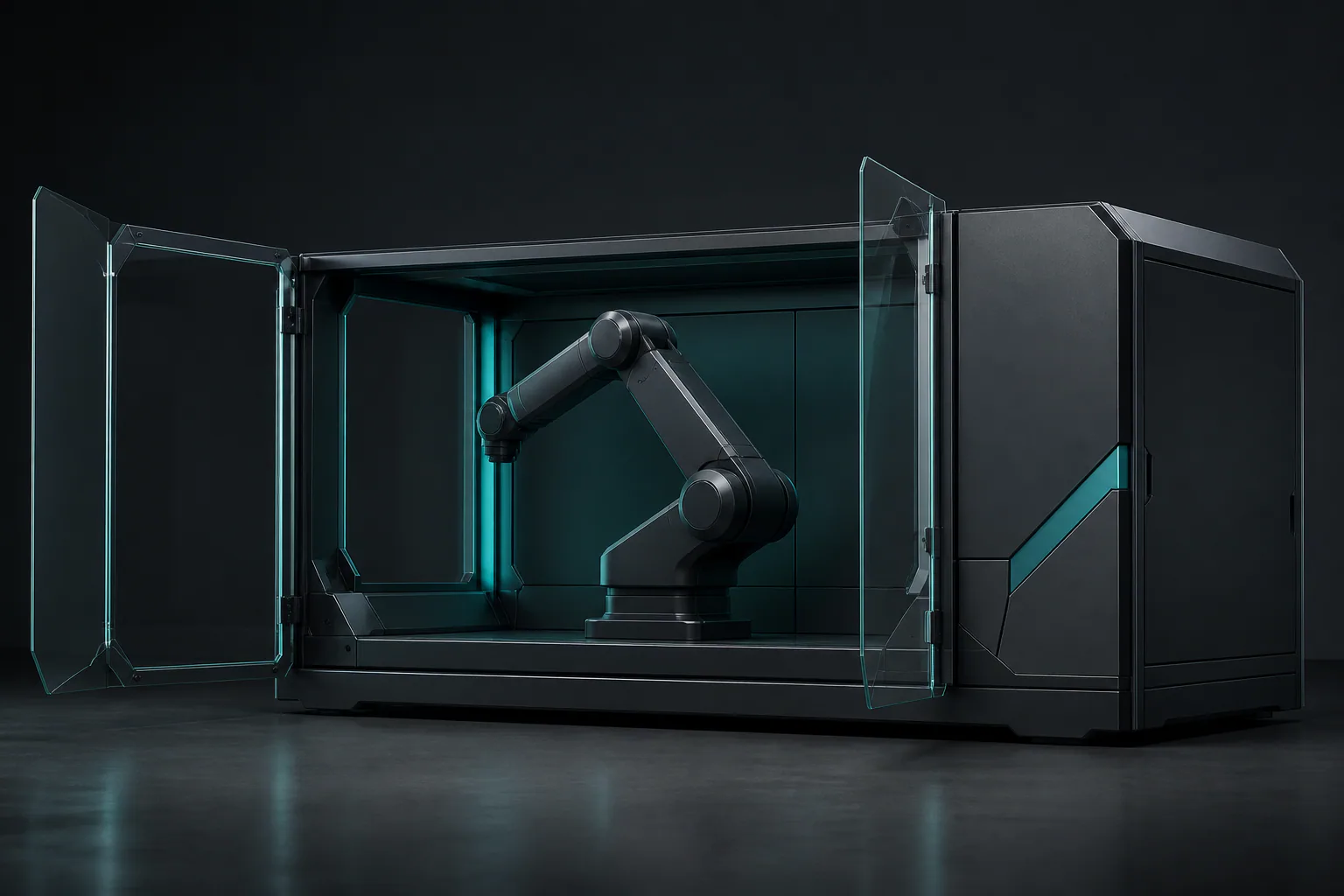

AI-generated concept render of a parked arm inside an open inactive work cell — **Service-access study** Illustrative access-panel arrangement only; no actual enclosure, component layout, maintenance procedure, or safe service state is represented.

AI-generated rear service-panel concept for an inactive guarded robotic work cell — **Rear service-panel study** Illustrative cabinet, ventilation, and cable-inlet geometry only.

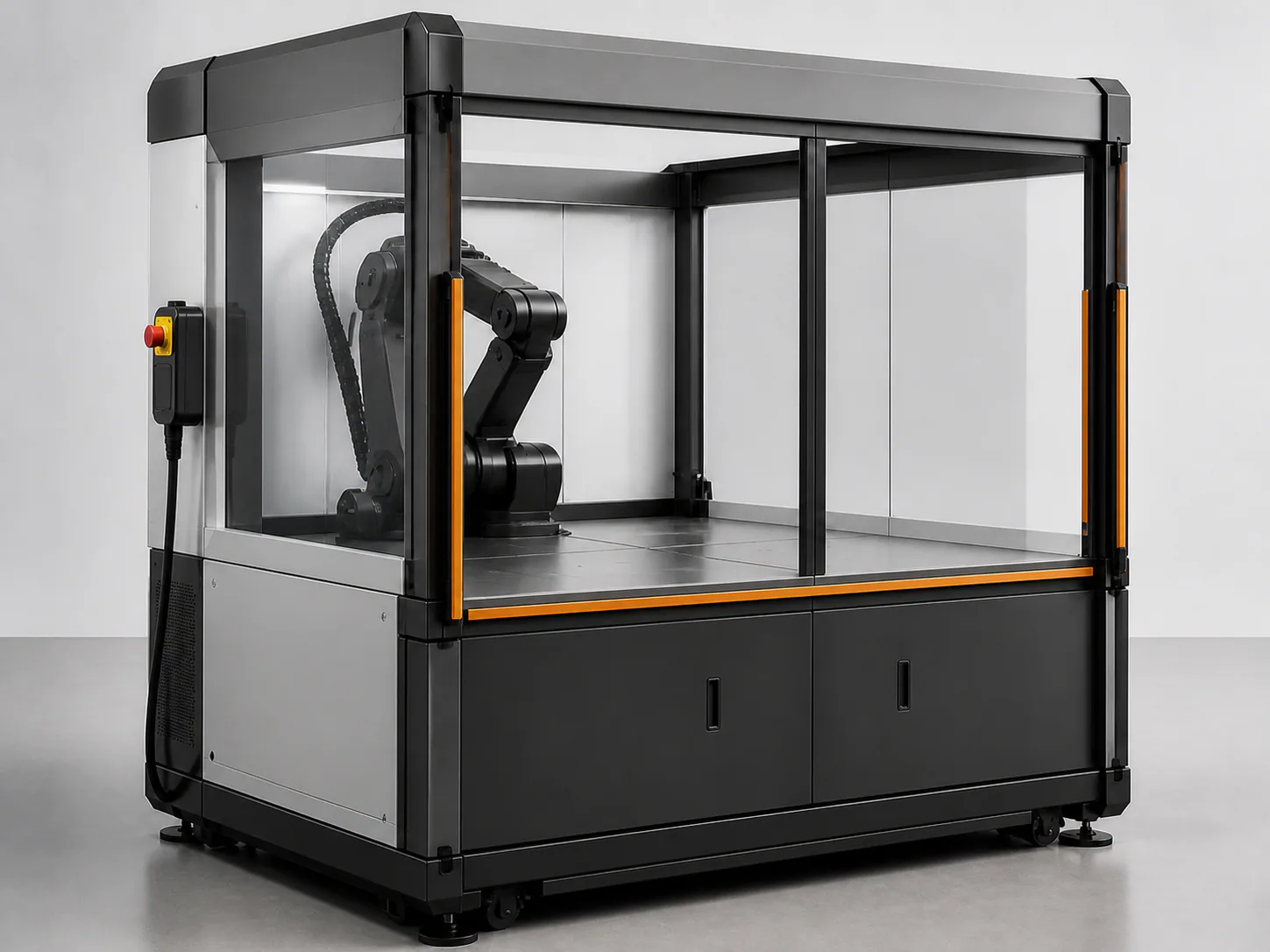

AI-generated safety-interface concept for an inactive guarded robotic work cell — **Safety-interface study** Illustrative guard, frame, and emergency-stop placement only; no safety performance is represented.

Future physical assets, safety reviews, calibrated evidence, and any authorized test records must be retained separately from these concept renders. This page does not authorize physical actuation, fabrication, or operation.
