Flood Eye / Visual Build Record

Concept views 01–06

Each AI-generated image documents a possible product direction only. These are not photographs of completed hardware and are not evidence of sensor accuracy, flood prediction, warning reliability, power autonomy, communications availability, emergency integration, certification, installation, or field deployment.

Project overview

Purpose: Explore local observation of waterway conditions.
Intended users: Waterway managers and community resilience researchers.
Current stage: Concept and design exploration.
Available evidence: Illustrative concept visuals. Physical performance and suitability require validation.
Proposed next milestone: Define sensing requirements and a controlled calibration plan.

Select an image to enlarge it. Use the viewer controls or arrow keys to browse.

AI-generated Flood Eye concept render of a compact solar waterway observation station — **Waterway-observation concept** Illustrative enclosure, solar, and sensor-mast arrangement only; components, siting, and safety engineering remain TBD.

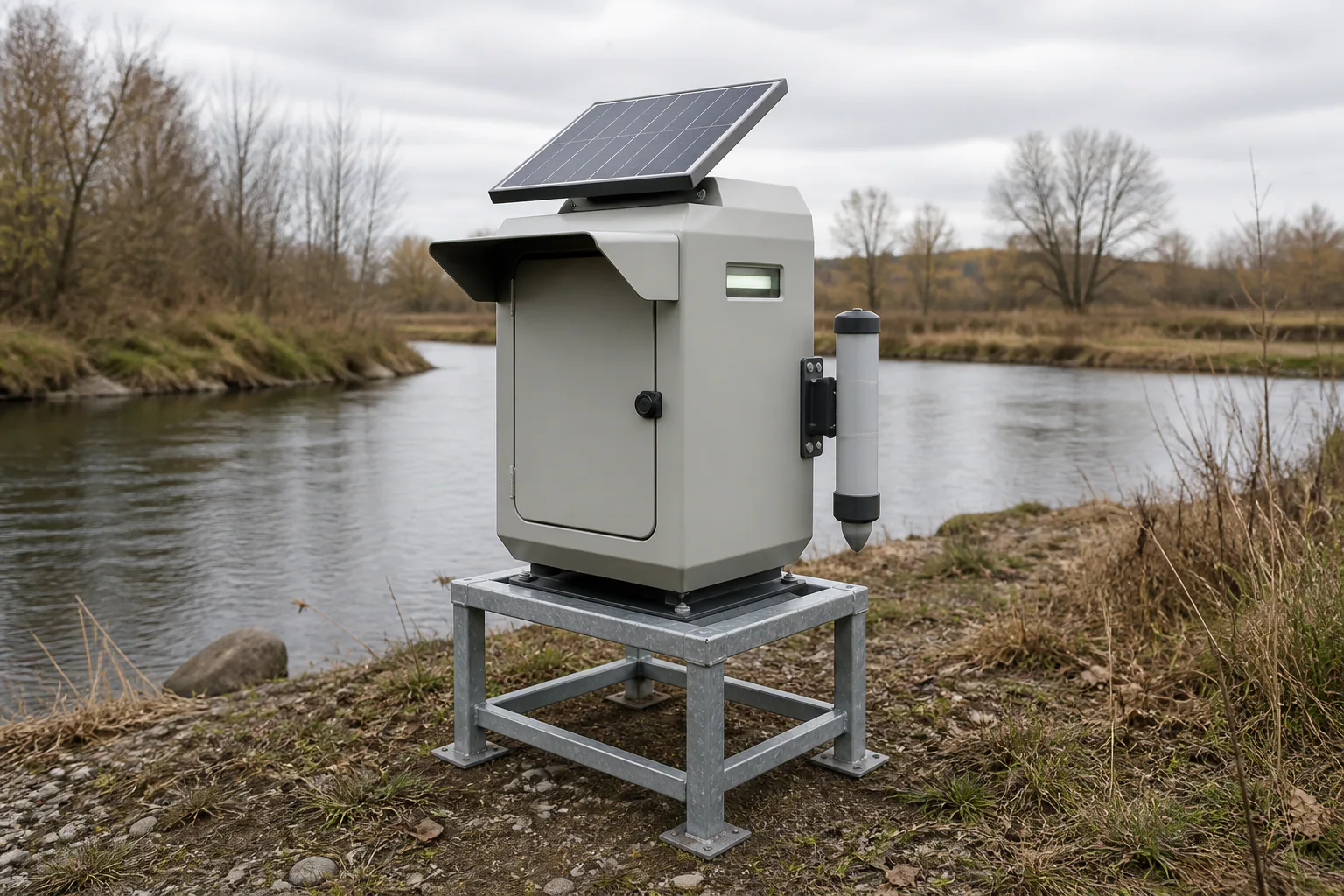

AI-generated Flood Eye concept render of a compact solar enclosure at a waterway — **Protected enclosure direction** Illustrative weather hood, enclosure, solar panel, and probe geometry only; not an installed or tested system.

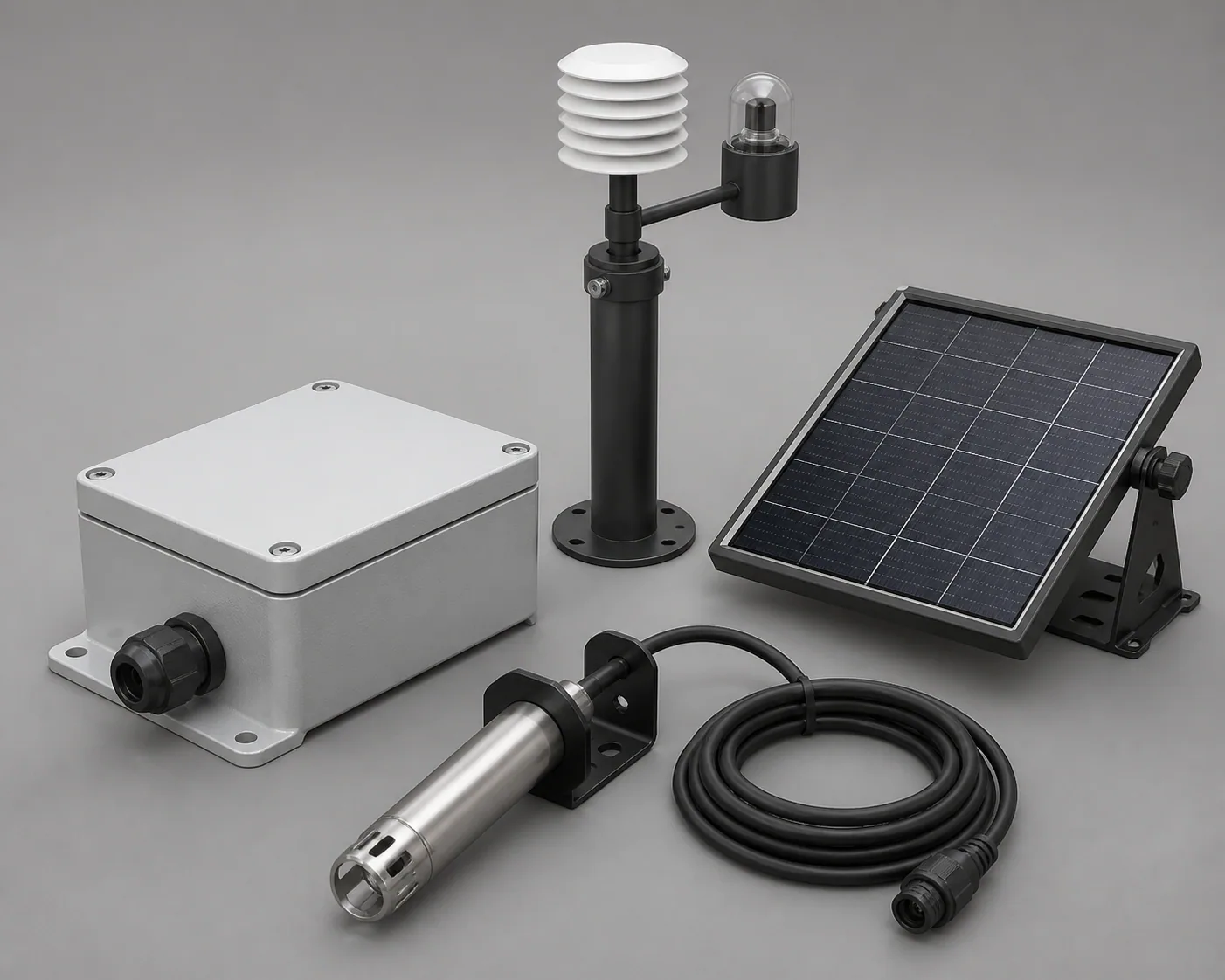

AI-generated Flood Eye concept component study with enclosure sensor mast solar panel and probe — **Component-layout study** Illustrative candidate arrangement only; component selection, interfaces, calibration, and electrical engineering remain TBD.

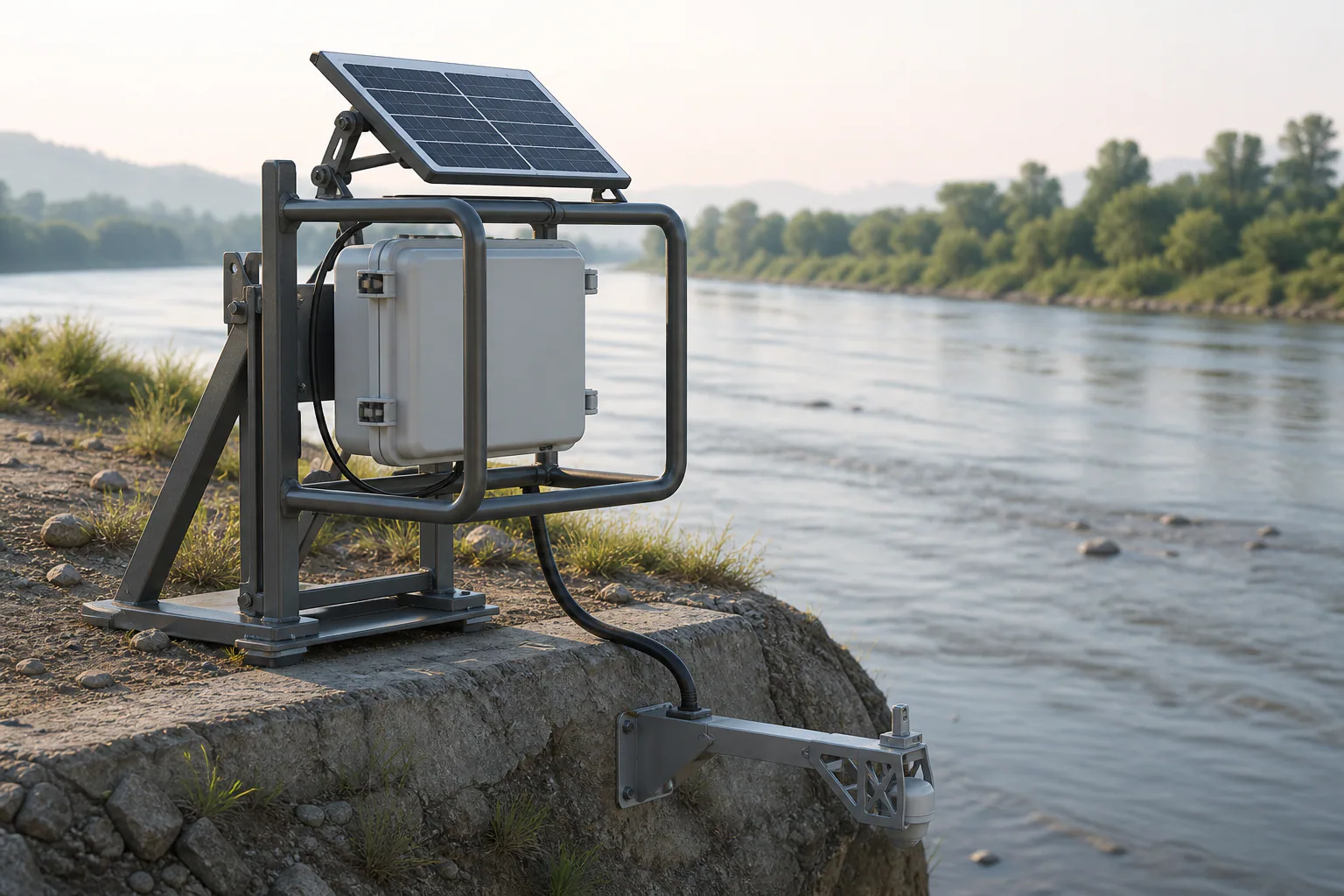

AI-generated Flood Eye concept render of a guarded solar mounting frame beside a waterway — **Guarded mounting direction** Illustrative support-frame and probe-bracket geometry only; it does not show a real installation, warning system, or validated field configuration.

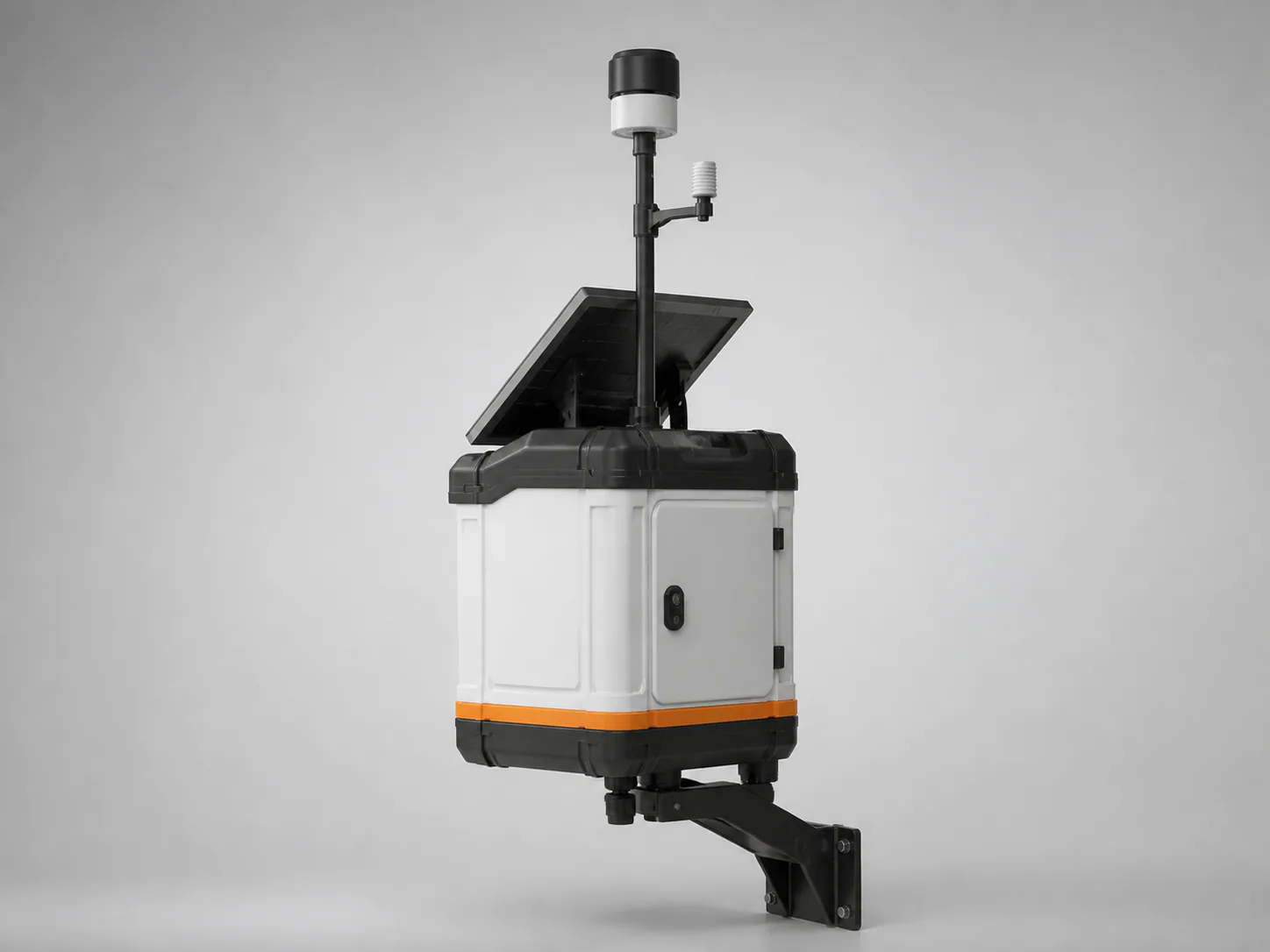

AI-generated Flood Eye rear service-access concept — **Rear service-access study** Illustrative enclosure door, cable glands, mast, solar, and bracket arrangement only.

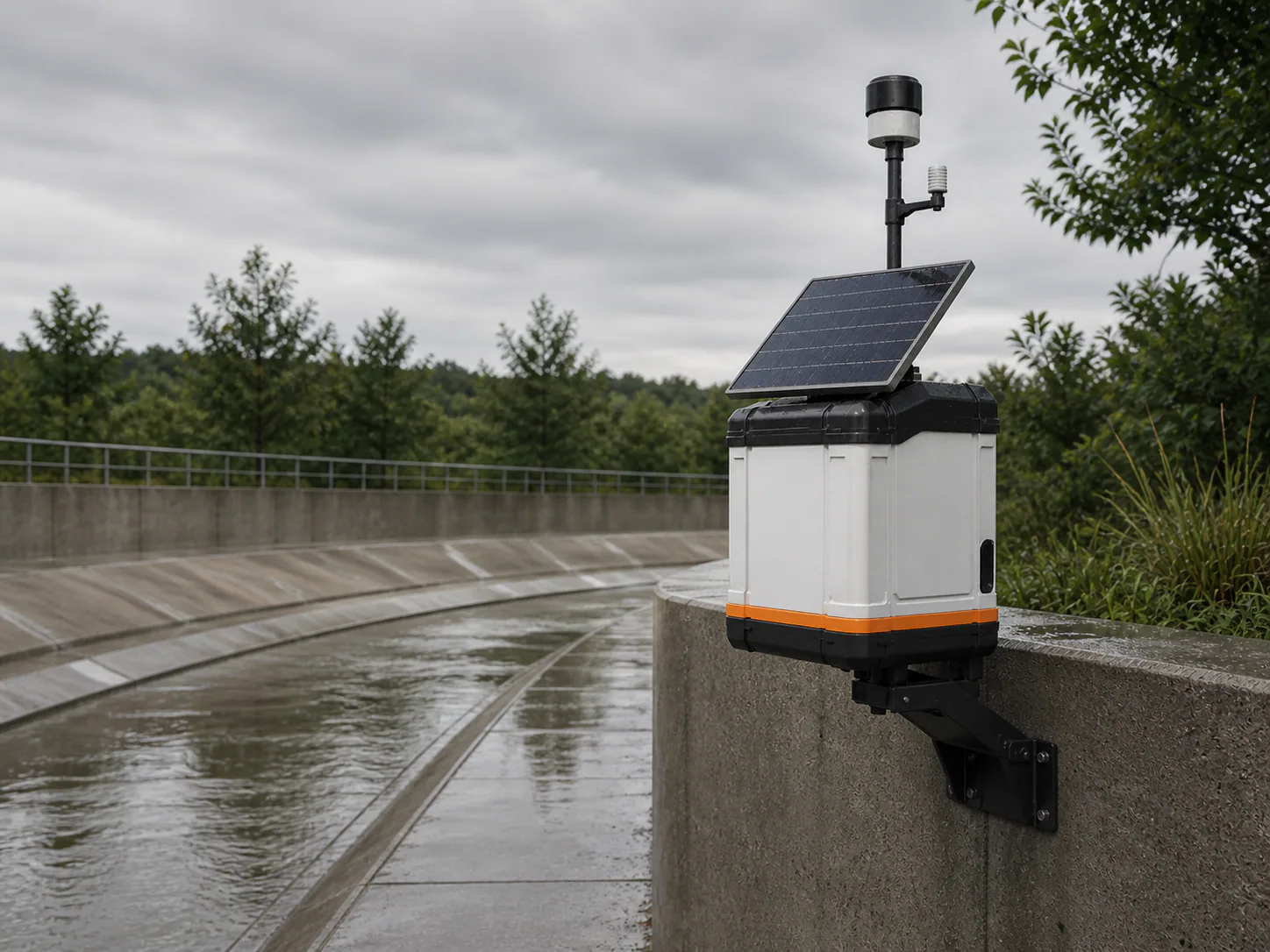

AI-generated Flood Eye concept beside a generic drainage channel after rain — **Channel inspection context** Illustrative observation context only; no warning reliability or installed performance is represented.

Future physical assets, calibrated observations, verified tests, and any authorized field records must be retained separately from these concept renders. This page does not authorize warning issuance or installation.
